Description

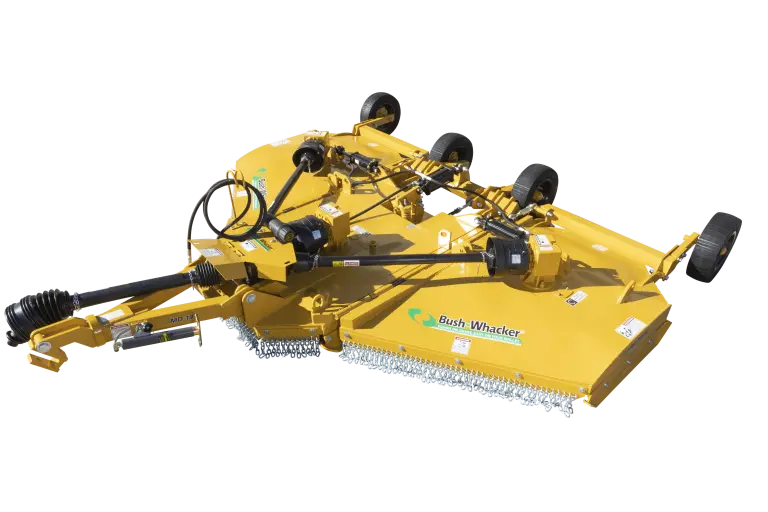

Bush Whacker Medium Duty Rotary 12′ Cutter MD144

The MD-144 is a Flex-Wing unit is perfect for tractors running with 35 to 75 HP. So whether you are the “weekend farmer” with 10-40 acres who are looking to reduce his cutting time on the weekends or the professional mowing pastures, we’re certain you’ll find the MD-144 has what it takes to get the job done!

• DRIVELINES
  #1 in its class with Cat 4 Drivelines on the Main Unit and Cat 4 Drivelines on the Wings

• GEARBOXES
  #1 in its class with 120 HP capacity

• GEARBOX SHAFTS
  #1 in its class with 1″ 20 spline divider on the input and 2″ on the output

• CUTTING CAPACITY
  #1 in its class with 3″ cutting capacity

• CUTTING HEIGHT
  #1 in its class with a cutting height between 2″ to 13″

Specifications

Cut Width – 144″

HP Require (MIN.) – 35 HP Min

Gearbox Rating Power Divider – 160 HP

Gearbox Rating Center and Wing – 120 HP

Gearbox Shaft Input – 1 – 3/4″ – 20 Spline

Gearbox Shaft Output – 2″

Bladetip Speed Wing – 14,600 FPM-Wing/14,181 FPM Center

Cutting Capacity (Max.) – 3″

Driveline Size Main – CAT 6

Driveline Size Wing – CAT 4

Tires – Laminated or Treaded Laminated

Cutting Height – 2″ – 13″

Hitch – Swivel Clevis

Tongue Weight – 1,005 lbs

Total Weight – 3,350 lbs

Side Band – 3/8″

Blades – 1/2″ x 4″ Updraft

Blade Holder – 3/16″ Pan w/ 1 x 4″ Gusseted Bar

Gearbox Warranty – 5 Year Limited

Deck Height – 10.5″

Deck – 10 Gauge

Blade Overlap – 8″

Stump Jumper Size – 3/16″ x 26″

Remotes – One

Hubs – 5 Bolt

Hinge Rods – 1″

Leveling Rods – 1″

Overall Length – 165″

Overall Width – 155″

Chains – Single Double RowChain guards

Hydraulics – 4×8″ Suspension/3×8 Wing Cylinder

Transport Width – 96″
