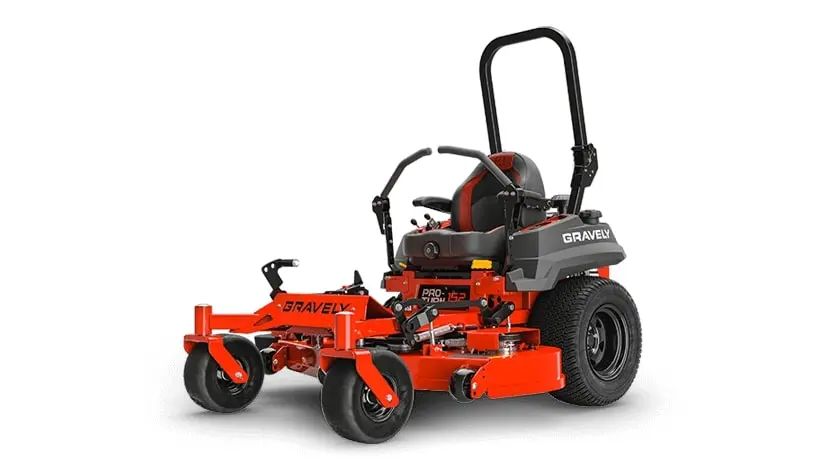

Gravely Pro-Turn® 152 Kawasaki® Zero-Turn Mower

Put your best foot forward with the power and performance of the PRO-TURN 100.

Every inch is of value on the PRO-TURN 100. Packed with Gravely brand’s time-tested features, this hard-working mower stands up to your toughest jobs.

Specification:

Engine:

• Model: Kawasaki® FX691V
• Horsepower: 22
• Displacement: 44.3 in³ / 726 cc
• Fuel System: Gas
• Fuel Capacity: 10 gal / 37.9 ltr

Drive System:

• System: Hydro-Gear® ZT-3400 Transaxles
• Transmission Type: Hydrostatic
• Brake Type: Lever Activated Parking

Operator Features:

• Position: Sit
• Forward Speed: 10 mph / 16.1 kph
• Reverse Speed: 5 mph / 8 kph

Wheels:

• Front: 13.0 x 6.5 in – 6.0 in (33.0 x 16.5 cm – 15.2 cm)
• Rear: 23.0 x 10.5 in – 12.0 in (58.4 x 26.7 cm – 30.5 cm)

Electric:

• Battery Capacity: 300 CCA
• Battery Type: Lead Acid – Maintenance Free
• Battery Size: U1

Deck:

• Size: 52 in / 132.1 cm
• Coverage per Hour: 5.2 acres / 2.1 hectares
• Material: 7 ga (7-gauge)
• Construction: Fabricated X-Factor® II
• Discharge Configuration: Side
• Cutting Height Range: 1 in / 2.5 cm to 5 in / 12.7 cm
• Cutting Width: 52 in / 132.1 cm

Dimensions:

• Weight (Assembled): 1079 lb / 489.3 kg
• Length: 78.5 in / 199.4 cm
• Width: 52 in / 132.1 cm
• Width (Chute Up): 55.5 in / 141 cm
• Width (Chute Down): 67.5 in / 171.5 cm

table { width: 100%; border-collapse: collapse; text-align: center; border: 1px solid black } td, th { border: 1px solid #dddddd; padding: 8px; }

Width	Weight	Height	Length
52 Inch	1079 Pounds	0 Inch	78.5 Inch
