Description
Features
- The durable Honda GX series commercial grade engine is easy starting and provides ample power for the toughest conditions.
- The WB30 features abrasion-resistant silicone-carbide seals for extended wear.
- The rigid-mount cast iron volute reduces case wear, increasing the life of the pump.
- Protects the pump, while offering a convenient tie down location for transport.
- The strainer allows up to 8 mm (5/16 in.) solids to pass through, helping to prevent clogging.
- High performance mounts minimize vibration, keeping the pump from walking away or burying itself in soft soil conditions. The reduced vibration also reduces wear on components, increasing the pump’s durability.
- Protects the pump by shutting the engine off when low oil is detected.
- You can rest easy, knowing your pump is cove
What’s in The Box

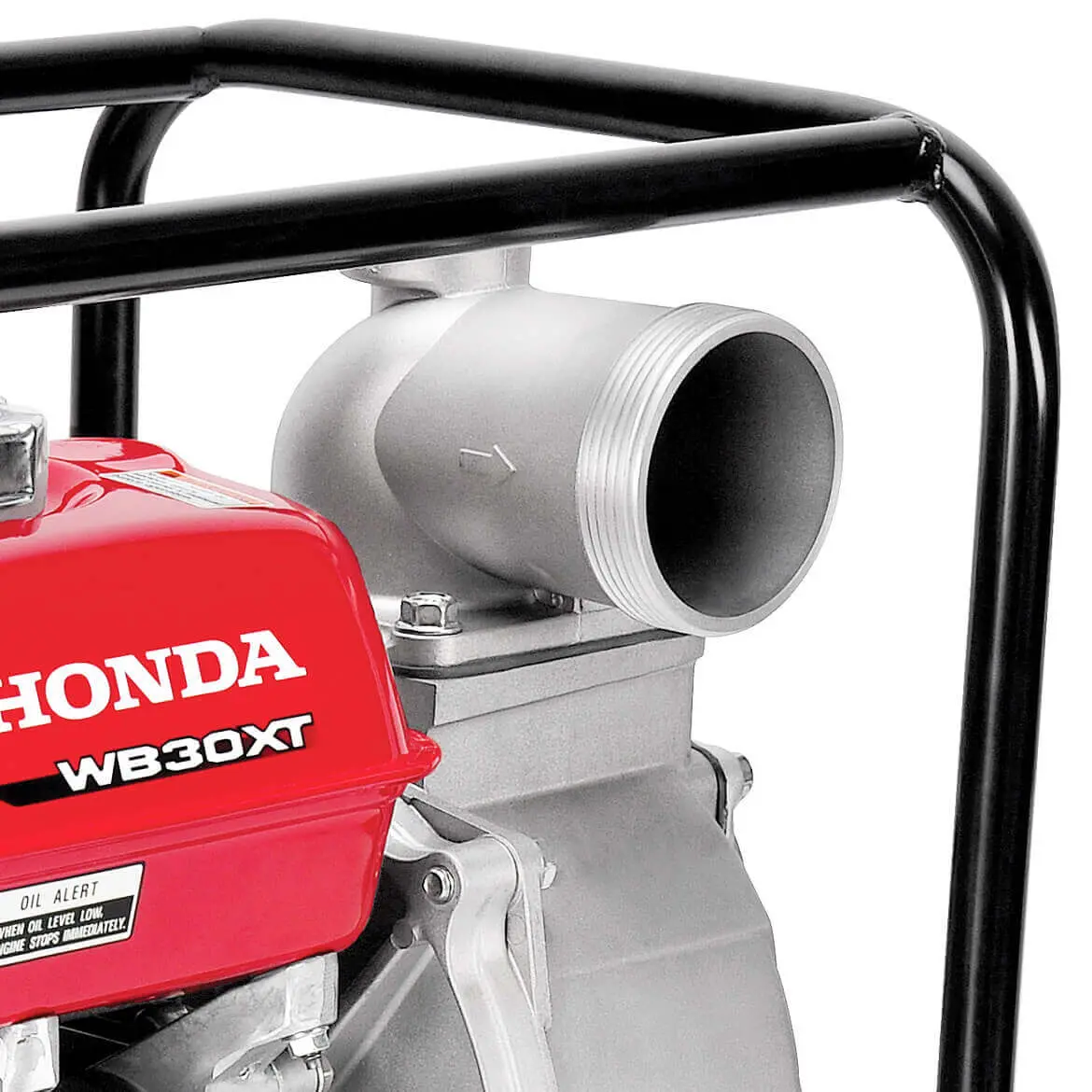

- 3″ General Purpose Water Pump – Reconditioned
- Owner’s Manual
Warranty
- Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | WB30XT3 |
| Brand | Honda |
| Engine | GX160 |
| Displacement | 163cc |
| Bore and stroke | 2.7″ x 1.8″ |
| Compression Ratio | 9.0-1 |
| Oil Alert | Std |
| Pump Type | Centrifugal, Self-priming |
| Volute | Rigid Mounted Cast Iron |
| Impeller | 4 Vane Cast Iron |
| Mechanical Seal (Pump case / impeller) | Silicon Carbide/Silicon Carbide |
| Priming time | 150 sec @16.4 ft. |
| Drive system | Direct |
| Discharge capacity | 290 gal/min |
| Suction port diameter | 3″ NPT |
| Discharge port diameter | 3″ NPT |
| Total head lift | 85 ft. |
| Suction head lift | 25 ft. |
| Maximum pressure | 37 psi |
| Solids handling | N/A |
| Dimensions (LxWxH) | 20.1″x 15.2″ x 17.9″ |
| Dry weight | 57 lb. |
| Fuel Capacity | 0.82 gal |
| Run Time at Max Discharge | 1.9 hr |
| Strainer Part # | 78325-YG4-000 |
