Simonsen #50 Stainless Steel Roller Chain – 8 Pitch Links, Part #1249-10

Description

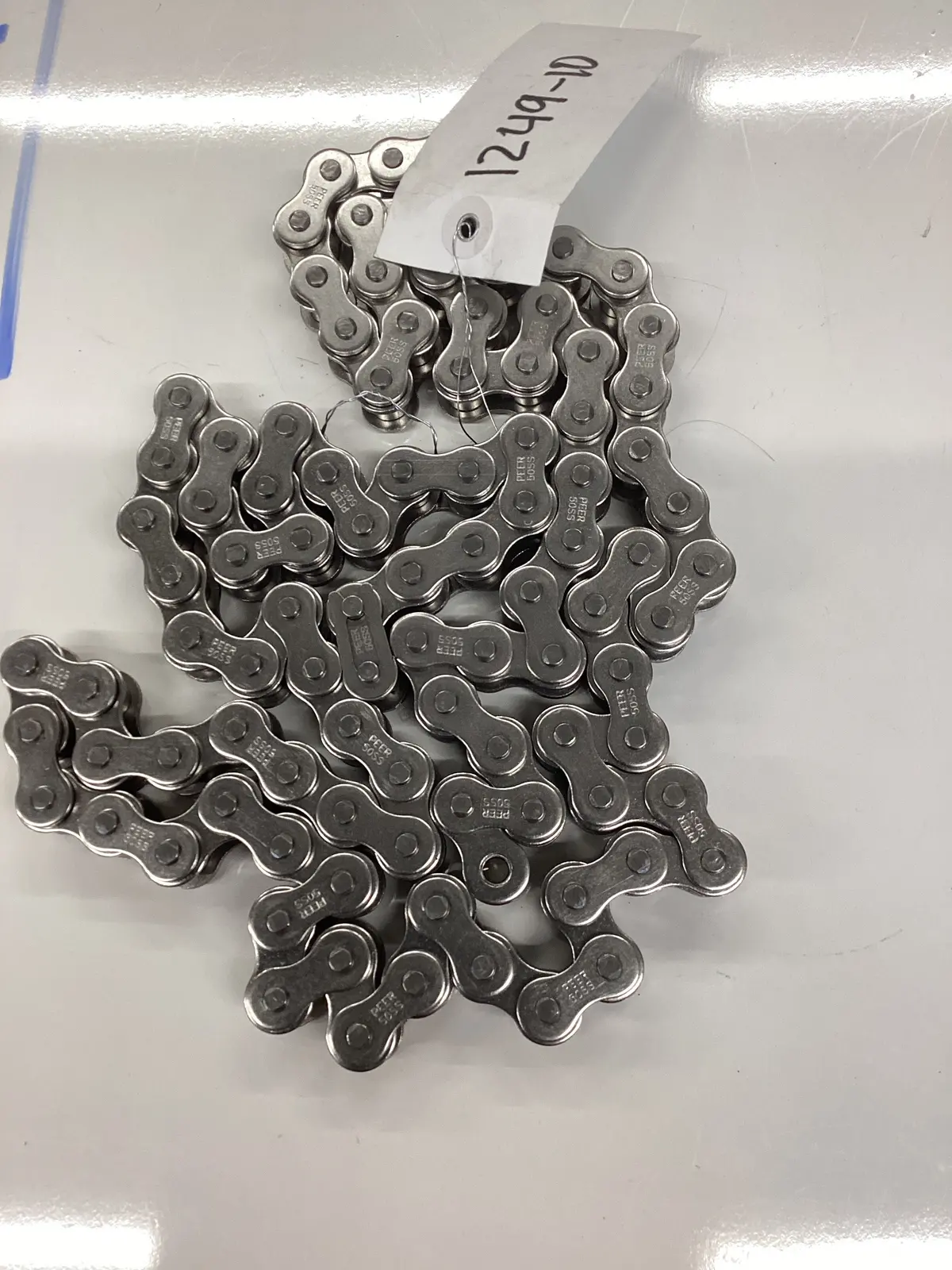

Simonsen #50 SS Chain X 08 Pitches: #1249-10

The Simonsen #1249-10 is a #50 stainless steel roller chain assembly, typically consisting of a specific length (often 98 pitches) and including a stainless steel connector link. Product Overview

• Chain Type: ANSI #50 Stainless Steel (SS). Stainless steel construction (typically 304 grade) provides essential corrosion resistance for equipment exposed to fertilizers and harsh outdoor environments.
• Application: Primarily used in the drive systems for conveyor aprons or distributor fans on Simonsen fertilizer spreaders, such as the SMC series pull-type spreaders.
• Kit Contents: The assembly normally includes the chain and a matching stainless steel connector link.

Specifications

• Pitch: 5/8 inch (0.625″).
• Width between Inner Plates: 3/8 inch (0.375″).
• Length: While standard rolls are 10ft, this specific Simonsen part number is often cited as a 98-pitch segment for specific drive configurations.
• Weight: Approximately 6 lbs for the assembly.
• Dimensions: Shipping package size is roughly 7 x 4 x 3 inches.
