Description

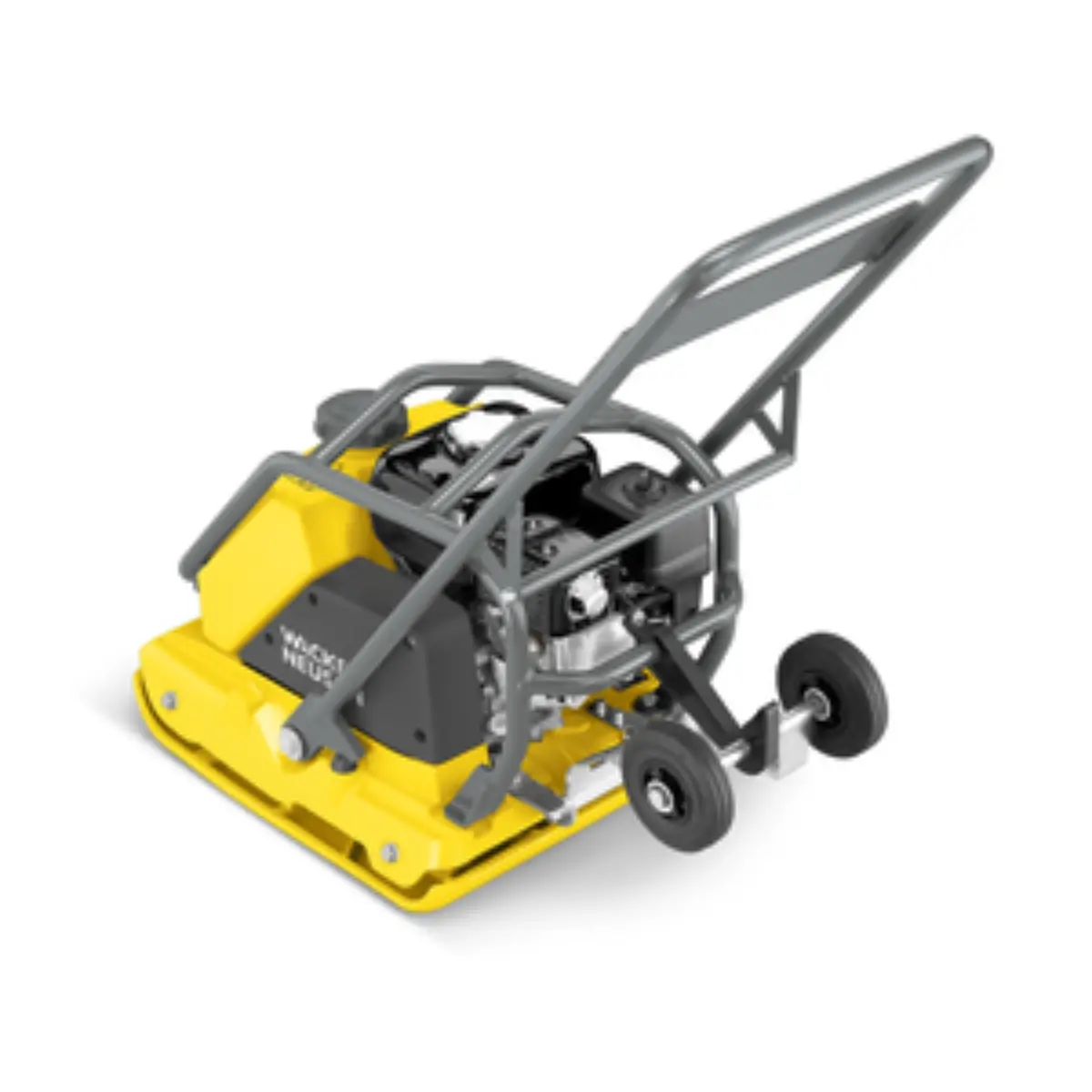

Wacker Neuson WP1550AW

• Low-maintenance design for low TCO
• Sturdy protective frame for engine and water tank
• Optimally shaped base plate

Specification:

Operating Fluids

• Exciter Oil Volume: 0.15 liters
• Exciter Oil Type: 75W-90 API GL-4

Engine

• Fuel Management: Carburettor
• Inclined Position Max: 20.0 degrees
• Engine Operating Mode: Four-stroke
• Operating Engine Speed: 3,520 rpm
• Fuel Consumption: 0.80 L/hour
• Tank Capacity: 3.60 liters
• Oil Filling Max: 0.60 liters
• Effective Power: 3.1 kW (Nominal), 3.6 kW (Max)
• Engine Type: Gasoline engine
• Cylinder: 1
• Engine Manufacturer: Honda
• Cylinder Capacity: 163 cm3
• Oil Specification: SAE 10W-30
• Starter Type: Recoil starter

Mechanical – Output Details

• Vibrations: 5,880 vibrations per minute (98.0 Hz)
• Forward Running Speed: 29.00 m/min
• Transmission: FKK-KR
• Gradeability: 36.4%
• Centrifugal Force: 15,000 kN
• Area Capacity: 870 m2/h

Electrical System

• Electrode Distance: 0.70 – 0.80 mm

Environment Data

• Operating Temperature Range: -15 to 40 °C
• Storage Temperature Range: -15 to 40 °C
• Sound Level: LpA 94.0 dB(A), LWA 108.0 dB(A) guaranteed, 107.0 dB(A) measured
• Hand-Arm Vibration (HAV) Summation: 5.3 m/s² (average value), 0.5 m/s² (uncertainty)

Mechanical Details

• Length Drawbar in Operational Position: 877 mm
• Operating Weight: 96.0 kg
• Ground Clearance: 527 mm
• Height: 963 mm
• Width: 498 mm

Custom Attributes

• Model Series: WP

table { width: 100%; border-collapse: collapse; text-align: center; border: 1px solid black } td, th { border: 1px solid #dddddd; padding: 8px; }

Width	Weight	Height	Length
498 Mile	96 Pounds	963 Mile	877 Mile
